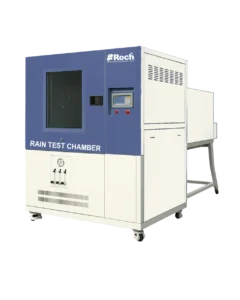

Rain Test Chamber Manufacturers
Roch Mechatronics Inc. is a manufacturer & supplier of rain test chambers. Rain test chambers carry out tests on products exposed outdoors, even if not regularly, such as lighting equipment, satellite dishes, and vehicles. These products must be able to function reliably while withstanding various rain intensities. Rain Test Chamber is generally used to conduct whole body testing of assembled vehicles under different rain test procedures to study and estimate their structural degradations and destructions induced by rain or water.The twin shower area, with capacities of 1.1 million liters and 0.35 million liters, is housed within a dedicated shed. It features an interconnected array of pipes forming designated zones to ensure uniform water spraying in compliance with the JSS 55555 test standard. Water is propelled through the nozzles at a flow rate of up to 288 cubic meters per hour. The test chamber’s water collection system includes a centrally placed grating with a sufficient slope, efficiently gathering the sprayed water during operation and recirculating it back to the reservoir for a closed-loop circulation process.
Rain Test Chamber Services
A rain test chamber service refers to a facility that provides controlled testing environments where products can be exposed to simulated rain conditions to evaluate their water resistance and functionality under wet weather scenarios, typically used for items such as electronics, automotive parts, outdoor lighting, and other products exposed to the elements; essentially, it allows companies to test how well their products perform when subjected to different rain intensities and durations in a controlled laboratory setting.
Our Products
| Description | Shower Area 1 | Shower Area 2 |
| Workspace Dimensions (WxDxH) - mm | 20000 x 7000 x 8000 | 10000 x 7000 x 5000 |
| Workspace Dimensions (WxDxH) - in | 787 x 276 x 315 | 394 x 276 x 197 |
| Volume - Ltr | 1120000 | 350000 |
| Volume - Cuft | 39576 | 12367 |
| Number of Zones | 4 nos at a distance of 5m | 2 nos at a distance of 5m |
| Water Flow Rate/Nozzle - LPH | 450 +/- 45 | 450 +/- 45 |
| Number of Nozzles | 300 | 300 |
| Water Pressure - Kpa | 200 +/- 20 | 200 +/- 20 |
These chambers are used to assess the ability of products and materials to withstand exposure to rain and other water sources, ensuring they meet waterproof and weatherproof standards and regulations.
Rain Test Chambers find applications in a wide range of industries, including automotive, aerospace, electronics, construction, and outdoor equipment, to test products like vehicles, aircraft, electronic devices, and building materials.
Rain Test Chambers use controlled nozzles or water jets to spray water on the test sample. The duration, intensity, and water pressure can be adjusted to simulate different rain scenarios.
